Restricting sshd server to specific addresses fails

OS type and version Debian Linux 12
Virtualmin version 7.10.0

I would like to restrict SSH access to specific IPs (and later port)

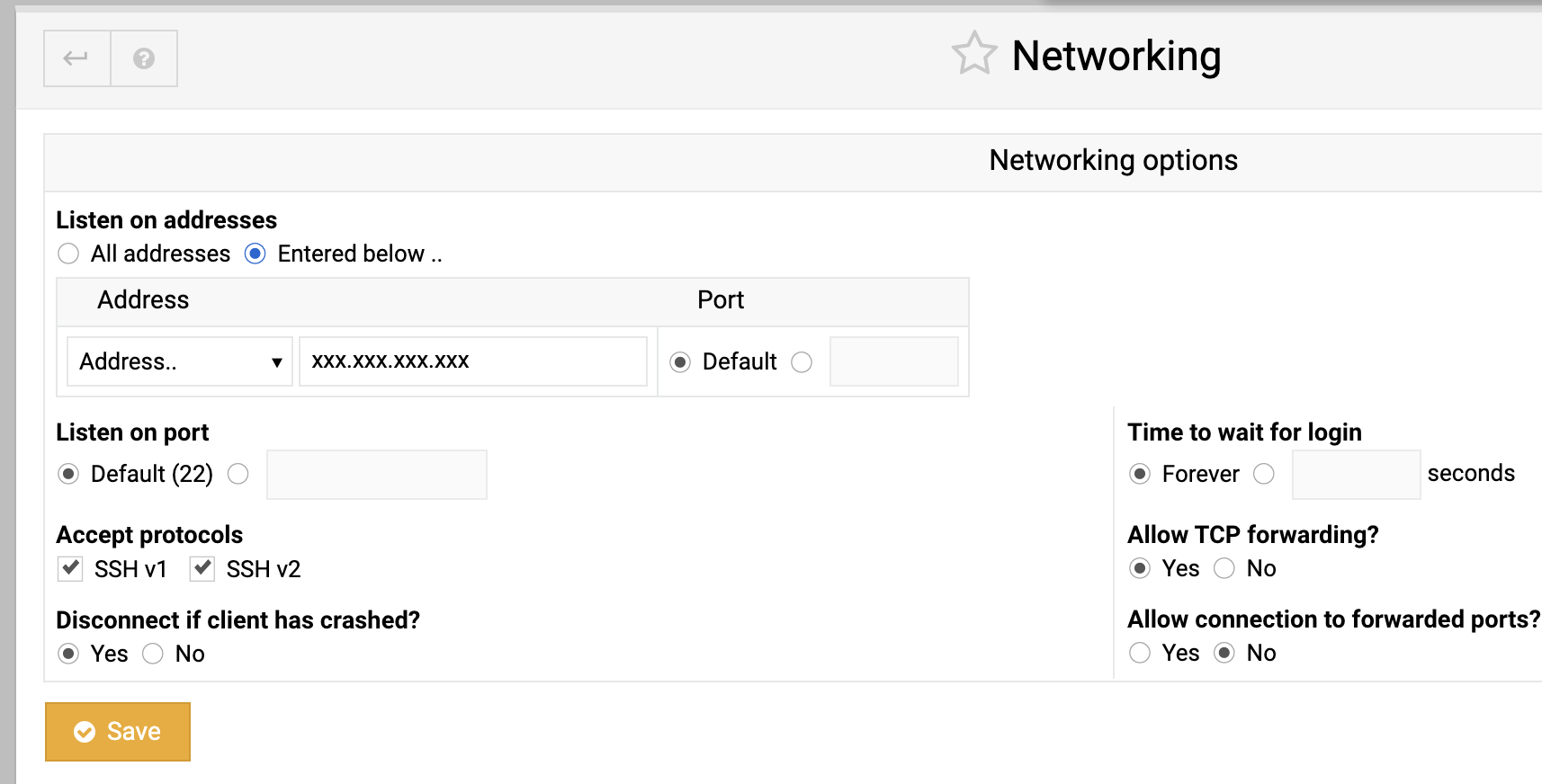

On the Webmin, Servers, SSH Server, Networking panel and I set “Listen on addresses” to my Ip address to start with.

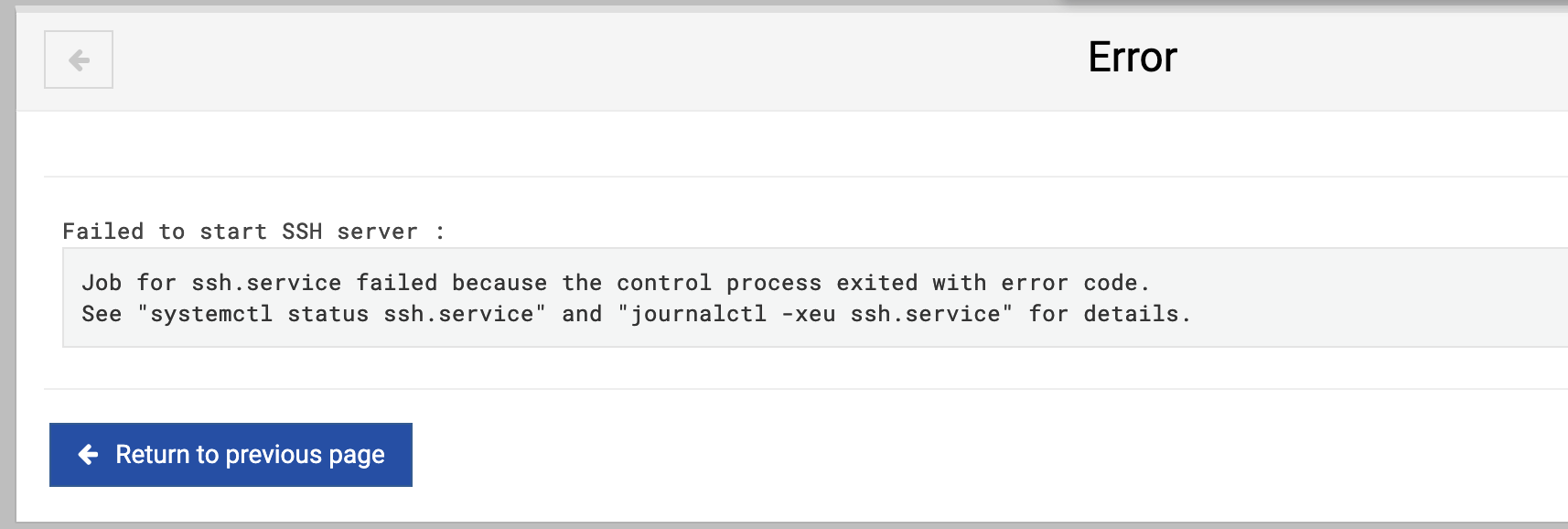

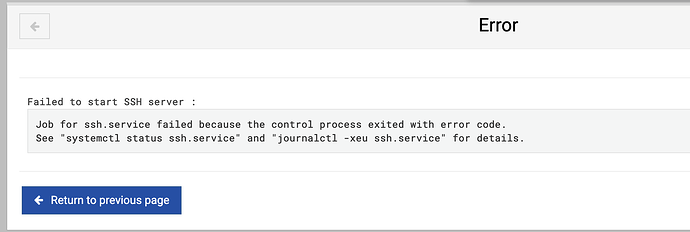

I apply the changes or restart the SSH Server but it fail to start with the following error:

And here the logs:

Jun 24 11:02:37 xxxx systemd[1]: Starting ssh.service - OpenBSD Secure Shell server...
Jun 24 11:02:37 xxxx sshd[231251]: error: Bind to port 22 on failed: Cannot assign requested address.
Jun 24 11:02:37 xxxx sshd[231251]: fatal: Cannot bind any address.
Jun 24 11:02:37 xxxx systemd[1]: ssh.service: Main process exited, code=exited, status=255/EXCEPTION
Jun 24 11:02:37 xxxx systemd[1]: ssh.service: Failed with result 'exit-code'.
Jun 24 11:02:37 xxxx systemd[1]: Failed to start ssh.service - OpenBSD Secure Shell server.

Any idea someone ?

I think that maybe a internal address, not external.

1 Like

I think @stefan1959 is correct here. This is for the daemon to listen ‘on’ not ‘for’. The daemon cannot bind to a remote address.

I have my home firewall set to only accept connections from my server for ssh.

Why not just use firewall rules?

Remove the existing rule for SSH port 22, then:

sudo firewall-cmd --zone=public --permanent --add-rich-rule=‘rule family=“ipv4” source address=“” service name=“ssh” accept’

sudo firewall-cmd --reload

Substitute your local network for “”

MMM… I understand your explanation of course but the interface is quite unclear about this as it allow to select:

  • ALL IPs
  • ALL IPv4
  • ALL IPv6
  • Address (what I’m trying to do)

And the port can be also assigned so… So my first thinking was it allows restricting IPs (any).

Thank you Randomz.

Would it work with external IP address ?
Or, is there a way to do the same but with a Virtuamin tools ? (Linux Firewall)

That’s “any local address”, which translates to when binding to an address.

Am I understanding you’re trying to allow only one remote IP address to log in to your server via ssh? That’s not this at all.

You want either Access Control in the SSH Server module, or you want a firewall rule.

Thanks Joe,

I’m on Debian12 and the SSH server, Access Control panel doesn’t show me IP parameters.

I guess I’m in this case : “This kind of access control is not supported by all SSH server versions though”.

I checked FirewallID, the firewall installed and I beleive there is no way to set a rich rules that would include port and IP.

I should try the Linux Firewall ?

No, your SSH version definitely supports IP access control.

What do you see on the Access Control page?

Only if you understand the implications of doing that. You’ll need to rebuild the firewall, reconfigure it for all of the services Virtualmin needs, reconfigure fail2ban to work with it instead, etc. That seems like a tremendous amount of work to avoid creating one rich rule in firewalld.

Oh, crap. Nevermind. I see what you’re saying, and I guess the SSH Server module doesn’t allow creating IP-based access control. I’ve never used it, I had no idea, I just assumed it did. I have no idea why it wouldn’t.

I guess you’ll need to edit the sshd_config directly. I’ve never done what you’re trying to do (i just require key-based auth, disable password auth, and disallow root logins, I don’t try to micromanage IPs and risk locking myself out), but I assume a Match Address section can do what you want.

This covers it:

So, you can do something like this (at the end of the sshd_config, as match sections have to be last):

Match Address
    PasswordAuthentication yes
    PubkeyAuthentication yes

And, in the default section disable both of those options.

But, I think you should just use key-based authentication, protect your key with a passphrase, and disable root logins (making sure you have sudoers configured appropriately). That’s going to be as secure as, or possibly more secure than, a firewall rule or an IP-based restriction.

1 Like

What do you think my rule does? service name=“ssh” is just a human readable way of saying port 22 and the IP range can be any range including real world IPs or it can be a single IP.

Unfortunately Virtualmin doesn’t deal with creating rich rules, so you need to do it manually.

You should wrap any code/commands in backticks or triple backticks (or click the “Preformatted text” button in the editor window), so that quotes and other things don’t get messed up. If OP tried copy-pasting this example, it wouldn’t work because the magic quotes are invalid syntax.

Thanks Joe as usual for sharing your precious experience.
I will dig in the direction of the key-based auth or Match Address.

I find these docs good for the key method.

Knowing you are connecting from a remote IP keep in mind some things.

Most ISP’s are dynamic meaning they change your external IP the one you will need to add from time to time.

What this means for you is there could be circumstances where your ISP gives you a new IP and you will forever be locked out of access so you’ll have to save a backup of your virtualmin a full backup without any restrictions so that you can upload and easily restore your server configuration.

You could limit this type of failure by looking up the ASN’s for your ISP and adding them to the white list. Alternatively, you could use a static IP VPN host quite possibly. If your ISP is a big name you’ll likely not want to add ASN’s because you’ll be allowing far to many people access. But it will greatly limit the scope of who can login adding ASN’s while not ideal security. Most hackers use VPN connections or non ISP direct connections.

But at the end of the day if you don’t have a static IP plan for failure to login at some point in case of some random turn of events where the ISP no longer has your static IP or your VPN no longer has that specific static IP etc… While it shouldn’t happen sometimes it does.

I assume you already know this but others may not and I feel it’s an important thing not to leave out.

If you have another server you could log in using ssh from there, the ip for that should be static. But not everyone has a second server, but it doesn’t take much to run up a server login to the old server change the firewall rule

Yes “Should Be” in a perfect world :wink: I was just iterating to plan for the worst things do change at times (though rare) you learn some lessons in the cross that bridge when you get there type of approach one of the most important lessons is always have a planB. I’ve delt with smaller up and coming companies, hosts, and VPN providers and things do change I recall being locked out of login because of restrictions. Or sometimes the host went belly up after paying for several years of service on this “Deal Price” Other times they got hacked remember when this happened to 1and1 I think it was well lets just say it was messy had to start from scratch. Didn’t plan for the worst they had taken backups but for whatever reasons upon restoration my backups were not even there so if you can store backups locally.

jimr1 Great addition yes!

Good thing that I left out was this yes also true one could do it this way.
