Need help with cachemgr.cgi (Squid server)

Webmin
1

Can anybody please help me with the configuration of cachemgr.cgi on Squid server (6.6)?

  1. I cannot figure out how to password protect this module. When I add a password to squid.conf like this:

cachemgr_passwd password all

I’m able to access the initial index page (from outside the server through Webmin interface), but all the other pages generate an error.

image1424×466 16.5 KB

On the other hand If I remove the password completely (by commenting the above line) I’m able to access both the index and the inner pages (those available without a password by default).

  1. Moreover If I get it right I shouldn’t be able to connect to the Cache Manager from the outside because I have the rules in my Squid conf file in the following order:
http_access deny !Safe_ports
http_access allow localhost manager
http_access deny manager
http_access deny !auth
http_access allow localhost
http_access deny to_localhost
http_access deny to_linklocal
http_access allow all_ips
http_access deny all

But I can.

Ubuntu 24.04.1
Webmin 2.202
Squid 6.6
squid-cgi 6.6-1ubuntu5

2

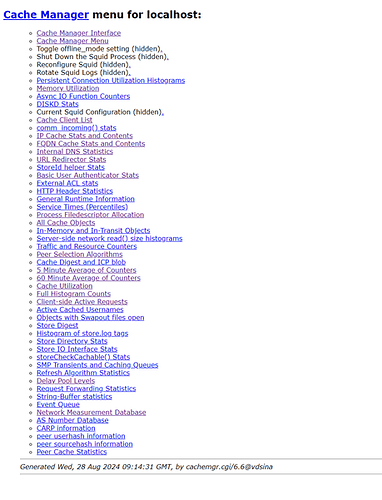

Here’s the password protected index:

image460×601 93 KB

3

And without the password:

image460×601 110 KB

4

And here’s the whole Squid conf:

acl SSL_ports port 443
acl Safe_ports port 80 # http
acl Safe_ports port 21 # ftp
acl Safe_ports port 443 # https
acl Safe_ports port 70 # gopher
acl Safe_ports port 210 # wais
acl Safe_ports port 1025-65535 # unregistered ports
acl Safe_ports port 280 # http-mgmt
acl Safe_ports port 488 # gss-http
acl Safe_ports port 591 # filemaker
acl Safe_ports port 777 # multiling http

auth_param basic program /etc/webmin/squid/squid-auth.pl /etc/webmin/squid/users
acl auth proxy_auth REQUIRED
acl all_ips src 0.0.0.0/0 ::/0

http_access deny !Safe_ports
http_access allow localhost manager
http_access deny manager
http_access deny !auth
http_access allow localhost
http_access deny to_localhost
http_access deny to_linklocal

include /etc/squid/conf.d/*.conf

http_access allow all_ips
http_access deny all

http_port 3128

cache_dir ufs /var/spool/squid 100 16 256

access_log daemon:/var/log/squid/access.log squid

coredump_dir /var/spool/squid

refresh_pattern ^ftp:		1440	20%	10080
refresh_pattern -i (/cgi-bin/|\?) 0	0%	0
refresh_pattern \/(Packages|Sources)(|\.bz2|\.gz|\.xz)$ 0 0% 0 refresh-ims
refresh_pattern \/Release(|\.gpg)$ 0 0% 0 refresh-ims
refresh_pattern \/InRelease$ 0 0% 0 refresh-ims
refresh_pattern \/(Translation-.*)(|\.bz2|\.gz|\.xz)$ 0 0% 0 refresh-ims
refresh_pattern .		0	20%	4320

cache_effective_user proxy
cache_effective_group proxy

cachemgr_passwd password all

max_filedescriptors 65535
5

wow squid, a very log time since I used that, the time of dial-up :slight_smile:
I found this docs.

one line that may help and I don’t see on yours is
acl managerAdmin src 192.0.2.1

Not sure how many users on here are still using squid, maybe see if there is a squid forum somewhere.

1 Like
6

long before I retired! (does anyone still?) is it even maintained?

7
In October 2023, it was revealed that Squid continued to suffer from
35 security vulnerabilities which had not been fixed for two and a half
years after their initial reporting

I guess not

1 Like
